Contact and Non-Contact Level Sensors

The characteristics of the level sensor device being measured, like tank size and shape, the pressure and temperature that the method requires, amount of element, power, etc. must be taken under consideration when determining if a contact or non-contact approach is that the right option.

Have to consider whether the chemical is corrosive and might affect to the level sensor unit and contact sensor might create a security hazard, whether the monitoring device could affect the reading or damage the contact sensor, and the other troublesome possibility.

Contact Level Sensors:

Level Sight Gauge

The principal sort of level estimation gadget to be considered here is likewise the least difficult. A level sight check regularly comprises of a cylinder associated with openings close to the top and base of the tank. The cylinder has a straightforward face so an administrator can see the degree of the procedure material. This is actually a non-contact estimation in light of the fact that there is no sensor reaching the procedure material.

Nonetheless, a large number of similar worries about contact sensors ought to be considered, for example, tumult, destructiveness, shabbiness, temperature, pressure, and so forth., which could harm or cloud the review region. Despite the fact that this strategy for level estimation might be considered the most dependable on the grounds that the material level can really be seen by the administrator, weight or temperature differentials between the tank and the survey territory can affect estimation precision.

When estimating an interface, the top opening of the check must be submerged at the degree of the top fluid and the base opening must be at the degree of the denser fluid or else the level estimation will be off base. Level sight checks must be utilized when estimating fluids, as granules and slurries can't move smoothly through the measure. There is additionally no real way to join any sort of robotization into the procedure utilizing this kind of estimation gadget.

RF Capacitance

RF Capacitance level sensors utilize a similar working standard as an electronic capacitor so as to measure level. An electronic capacitor comprises two conductive metal plates isolated by some sort of protecting material. Capacitance is the estimation of the measure of vitality a capacitor can store.

Utilizing a strategy that is fundamentally the same as that of an electronic capacitor, the capacitance of a procedure material can likewise, be estimated and afterward related to the level. On the off chance that estimating a non-conductive material, that material is utilized as the cover some portion of the capacitor and the tank divider goes about as the second conductive plate; if estimating a conductive material, the test body is protected with a protector and the material goes about as the other conductive plate.

In either case, an ascent in the level will connect with an expansion in the deliberate capacitance (over that of air). This innovation can be utilized for either point-estimation level switches or constant level estimation. Varieties of this procedure can be utilized to gauge fluids, granular solids, slurries, and interface levels.

Float

Different gadgets, for example, skims and displacers, depend on the material's specific gravity (thickness) to quantify the level. They regularly utilize a check like a sight level (a cylinder associated with the side of the tank towards the top and base).

Attractive buoys, a particular kind of buoy level sensor, commonly depend on reed transfers put the long way inside the cylinder. At the point when the buoy passes these transfers, the attractive field trips them. Along these lines, the exactness of such a sensor is constrained by the number of reed transfers put in the check.

Other buoy sensor types depend on the estimation of the expansion and withdrawal of an associated link. This kind of sensor, on a basic level, requires no capacity to work however is defenseless to disappointment from glide sticking or sticking.

Resistance Tape

The mechanical power of a procedure fluid can be utilized to quantify level utilizing what is known as obstruction tape. Two wires, one appended to a voltage source and the other to an accuracy resistor, are contained inside a protected, adaptable test.

Hydrostatic weight pushes on the test body and shorts out the submerged length of wire. The adjustment in opposition is corresponded with the degree of the procedure fluid. These kinds of contact tests will in general be sensitive and changes in thickness can have a minor impact. They are regularly used to gauge fluids and slurries.

Displacer

Displacers are dissimilar from float devices in that they are denser than the process fluid and suspended by a spring. They rely on Archimedes’ Principle to detect changes in buoyancy force, which is equal to the weight of the displaced fluid, caused by a rise or fall in level.

A sensor at the top of the gauge measures the change in apparent weight of the displacer body. The level measurement is therefore a product of the length of the displacer body covered by the process material and the specific gravity of the material. Both displacers and floats require much of the same considerations as mentioned previously with level sight gauges and special considerations for interface measurement.

Contacting Ultrasonic

Vibrating or ultrasonic level switches work under the rule that the sensor will vibrate at its thunderous recurrence when not submerged in process material. In the event that the recurrence is hosed, the material has arrived at the degree of the switch. This method works with fluids, slurries, and granules, in spite of the fact that thought ought to be made for covering or destructive materials.

Vibrating level switches will commonly just be utilized for point level estimation, rather than consistent level estimation, and trigger high or potentially low cautions. The sensors themselves will in general be delicate due to the degree of accuracy fundamental.

Bubble Tube

Air pocket tube level estimation depends on the particular gravity of the procedure material also. With this kind of contact sensor, a cylinder is submerged into the procedure liquid and air or nitrogen is siphoned through the opening, close to the base of the tank. The subsequent back weight is corresponding to the fluid level and thickness.

In cases where submerging a cylinder into the procedure fluid is illogical, air can be siphoned in through a section along the edge of the tank. This kind of sensor must be utilized to quantify the degree of fluids. On the off chance that the procedure fluid where the cylinder is submerged stays at a consistent level, any change in back-pressure is because of an adjustment in thickness or interface level, in this manner considering estimation of these factors.

Non-Contact Level Sensors:

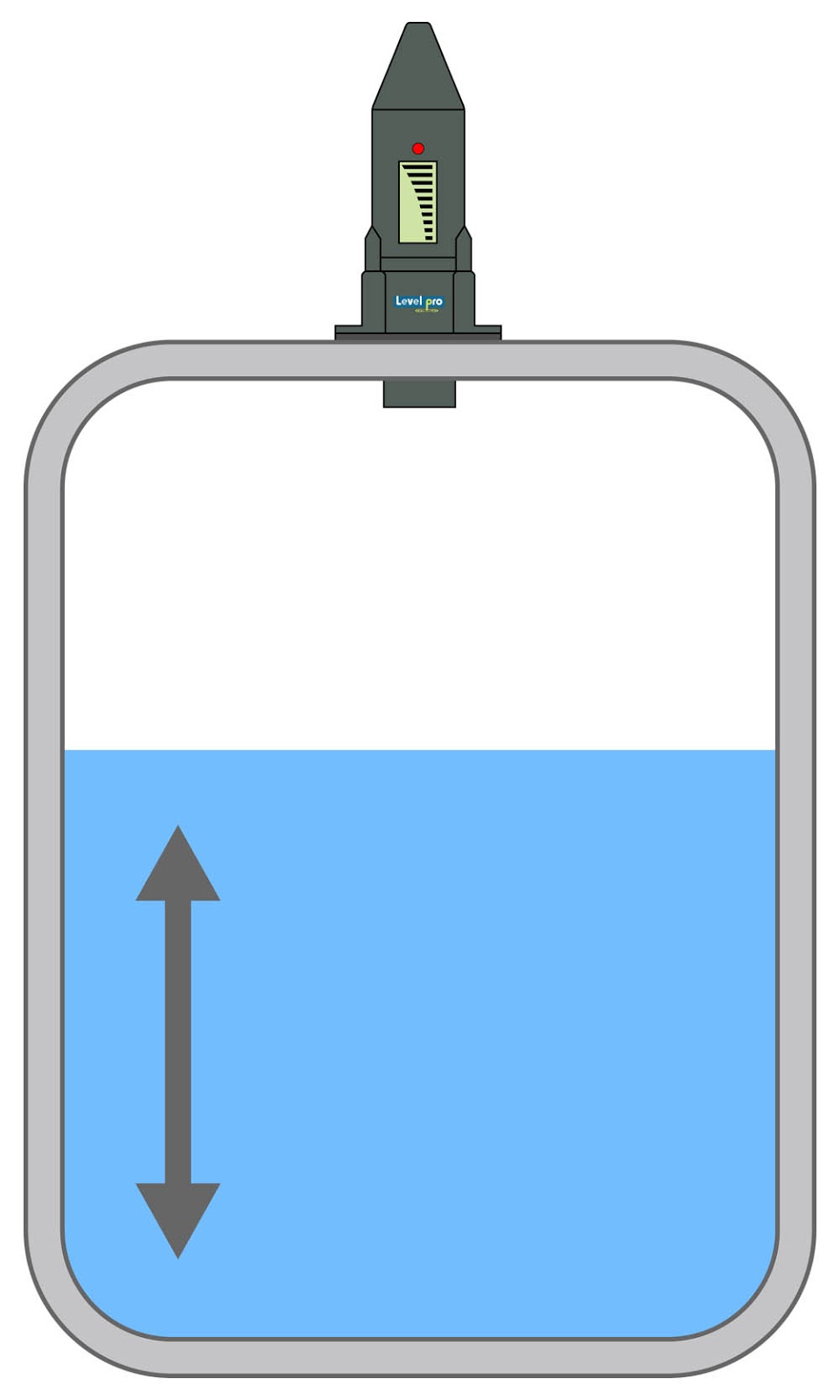

Non-Contacting Ultrasonic

Non-contact ultrasonic level sensors utilize a fundamentally the same as technique as radar sensors to gauge level. Be that as it may, rather than utilizing radio waves they utilize sound waves and the separation is determined as the result of one-a large portion of the flight time and the speed of sound. In contrast to the speed of light, the speed of sound is temperature subordinate, so the temperature of the tank should likewise be estimated and considered.

Like radar, they can likewise be utilized to gauge fluids, slurries, and granular solids. Procedure materials that produce a more grounded sonic reflection are increasingly appropriate to this kind of estimation. Buildup, dust development, and nearness of extra items inside the tank would all be able to cause estimation mistakes.

Load Cells

Burden cells, sensors ordinarily used to quantify weight, can be utilized to measure tank level. These sensors are joined to the help segments of a tank and measure the descending power applied on them by the mass of the compartment above. By considering the heaviness of the tank when unfilled and expecting that the tank has straight sides, any adjustment in the weight estimated by the heap cell can be associated with an adjustment in level. Burden cells can be utilized to distinguish the degree of fluids, slurries, and granular solids, yet require the procedure material to be of consistent thickness. Burden cells ordinarily are not used to gauge interface level.

Nuclear

Atomic sort level sensors utilize radioactive isotopes, normally either cobolt-60 or caesium-137, to transmit gamma radiation into a capacity compartment and sensors on the contrary side to gauge the weakening, or change in recurrence tweak, of that radiation. Isotopes are particles that have similar synthetic conduct to each other however an alternate number of neutrons.

Radioactive isotopes are those isotope varieties which are insecure under ordinary conditions and rot into different components. At the point when these molecules rot, they transmit three various types of radiation (alpha, beta, and gamma) which can be gotten and estimated by uncommon sensors. Gamma radiation is utilized for the reasons for level estimation in light of the fact that, of each of the three sorts, it is the best at infiltrating materials.

This innovation can be utilized in both single-point and nonstop level applications. In single-point estimation, for example, high and low alerts, a sensor is regularly introduced parallel to the wellspring of radiation on the contrary side of the tank and any adjustment in recurrence regulation over a specific edge triggers a caution. Since radiation is discharged from all headings from a radioactive component, ceaseless level the estimation includes utilizing sensors along the length of the tank on the contrary side.

Utilizing the constriction identified through a vacant tank as a gauge, any change distinguished by a sensor is credited to the level being at or over that sensor. In spite of the fact that this system is influenced little by the physical state and properties of the material, it is ordinarily possibly utilized when every other choice have been depleted because of the risks and cost of utilizing radioactive material and the shame related to it.
